Web-HTTP ProgressBar uploader

$Date: 2004/08/10 18:13:10 $

Table of contents

Introduction
Render options
Ouput
PHP source syntax highlight
Play demo

Introduction

This example requires :

PEAR::HTML_Progress 1.1 or better.

This example allows you to upload files from a web browser to your web server.

PEAR::HTML_QuickForm package is used to make and manage the form that will send file to your web server (right frame), while HTML_Progress is only used to display a vertical progress meter running in indeterminate mode (left frame).

Be aware that your web server could returns a timeout on long upload operation, by running the HTML_Progress script (See technical notes below).

[Top]

Technical notes

The script time-out refers to the number of seconds a PHP page is given before the script is assumed to have failed and the page terminated. If you are uploading a large file the script that is receiving the transfer may time out before the file has been completely uploaded. To alter this setting you should insert the following code into your uploading page prior to creating any HTML_Progress and HTML_QuickForm objects.

1	<?php set_time_limit(300); // five minutes ?>

Render options

increment = 5 (to make progress bar animation smoothest in indeterminate mode)

HTML_Progress::setIncrement()

speed = 100 (to make progress bar animation smoothest)

HTML_Progress::setAnimSpeed()

color = #000000
with  = 1px

HTML_Progress_UI::setBorderAttributes()

active-color   = #970038
inactive-color = #FFDDAA
width          = 20
height         = 20

HTML_Progress_UI::setCellAttributes()

count = 20

HTML_Progress_UI::setCellCount()

[Top]

Output

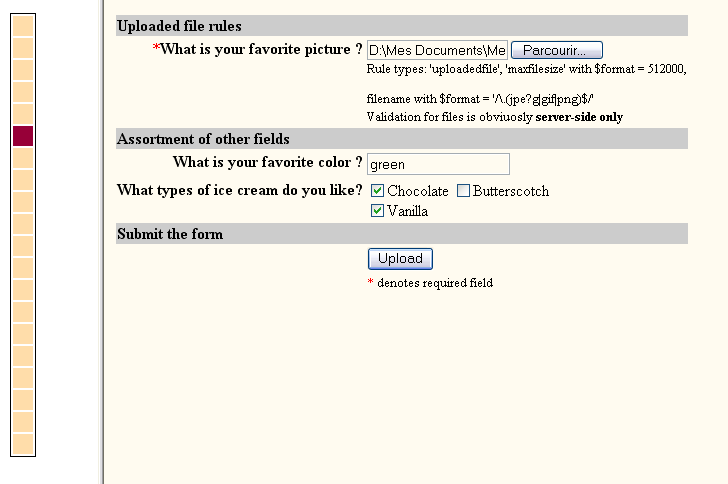

Screenshot

[Top]

PHP source syntax highlight

The form file selection: Open source listing in a new window.

The progress meter in indeterminate mode: Open source listing in a new window.

[Top]

Play demo

Run the script.

[Top]
